W5500-EVB-Pico	Raspberry Pi Pico 1	W5500	W5500

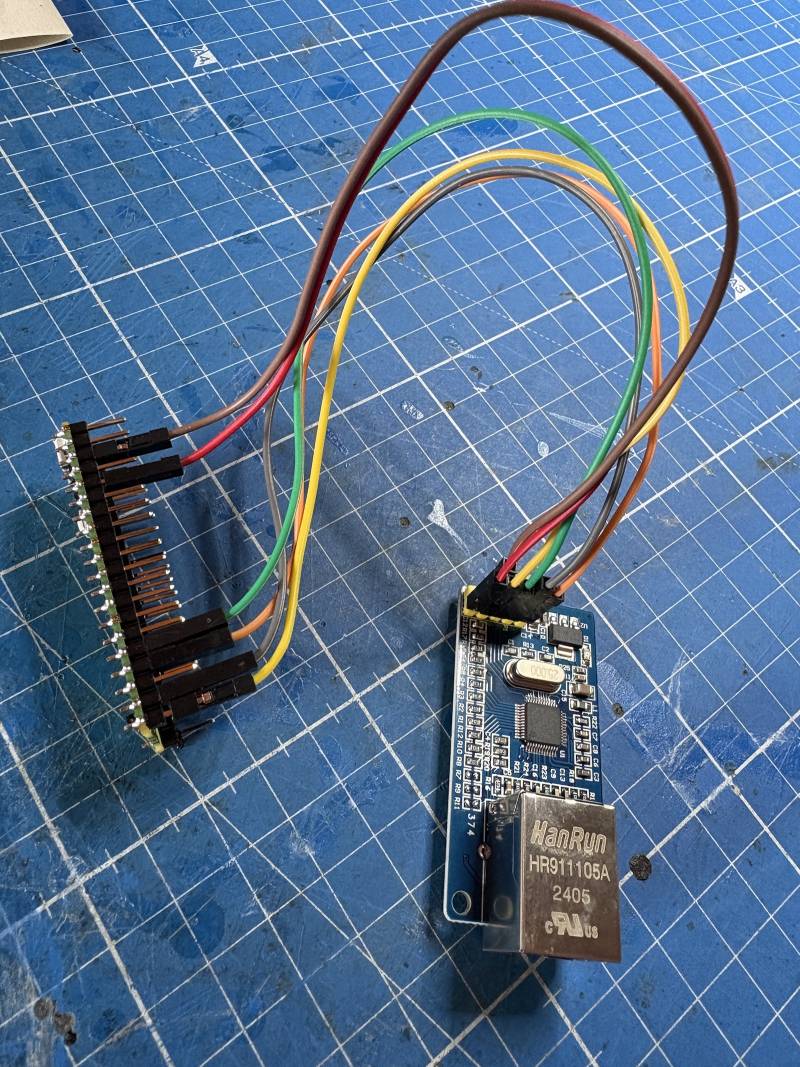

Goal is to provide a Pico with an ethernet connection W5500.
The W5500 is controlled by SPI and the WIOpico-ETH will use the same pin mapping as the WIOpico 16 I/O CAN.

• Only available for Pico's without WiFi shield.
• Looking up the Rocrail server by mDNS.
• Transparent communication between WiFi and Ethernet.
• Same pin mapping as the WIOpico 16 I/O CAN.

Use the following terminal command to activate the EthCon in WIO:

*ethcon=1

This is bit 0 in options7.
A reboot is needed.

• Arduino Ethernet Library → Ethernet
• Arduino mDNS Library → ArduinoMDNS
• W5500-EVB-Pico → Pico clone with W5500 on board
• W5500-EVB-Pico PoE → Pico clone with W5500 on board and PoE
